172211-2
Manufacturer:
TE Connectivity
Mfr.Part #:
172211-2
Datasheet:
Description:

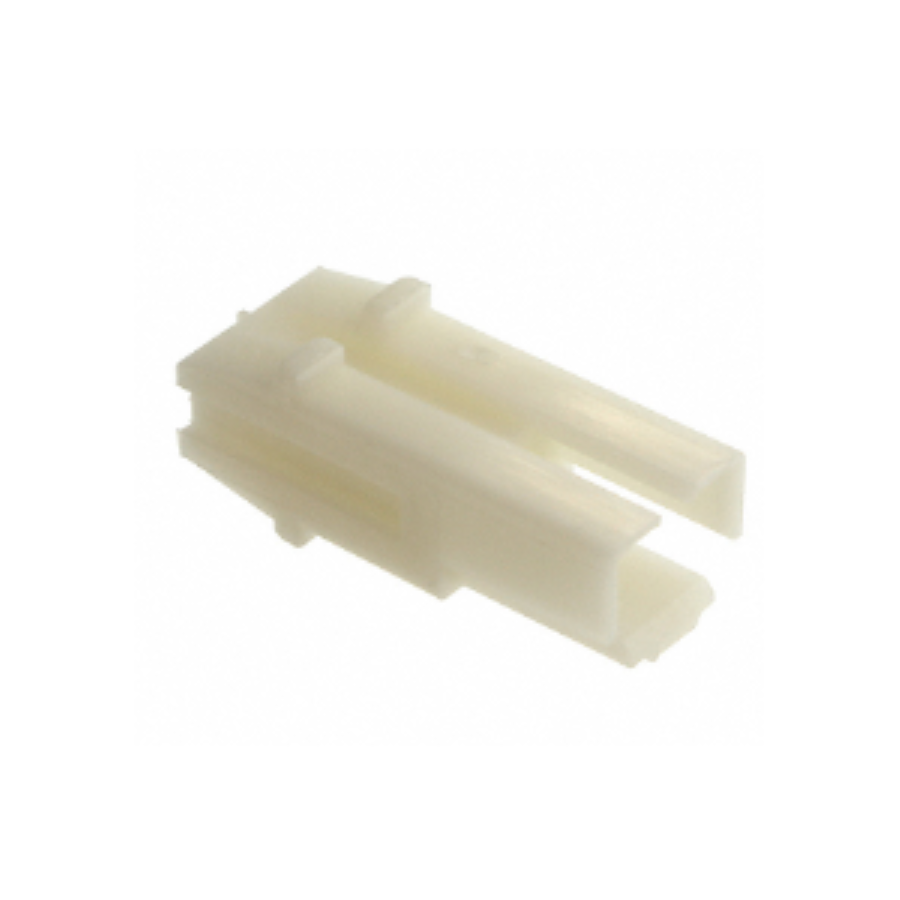

Headers and Wire Housings Cable, Free Hanging Pin, Plug Number of Positions:2 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 7.9 mm |
| Width | 19.7 mm |
| Termination | Crimp |
| Max Operating Temperature | 95 °C |
| Min Operating Temperature | -20 °C |
| Height | 6.4 mm |
| Packaging | Bulk |
| Depth | 20.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| Pitch | 2.5 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female |
| Number of Contacts | 2 |
| Connector Type | Pin, Plug |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | Polyamide |
| Housing Material | Nylon |
| Connector System | Wire-to-Board |
| Contact Current Rating | 2 A |
| Housing Color | Natural |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Mating Retention | With |
Stock: 12
Distributors
pcbx
pcbxUnit Price$0.11597
Ext.Price$0.11597
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11597 | $0.11597 |
| 10 | $0.10504 | $1.05040 |
| 50 | $0.09514 | $4.75700 |
| 100 | $0.08750 | $8.75000 |
| 500 | $0.08047 | $40.23500 |
| 1000 | $0.07401 | $74.01000 |
| 3000 | $0.06945 | $208.35000 |
| 5000 | $0.06517 | $325.85000 |
